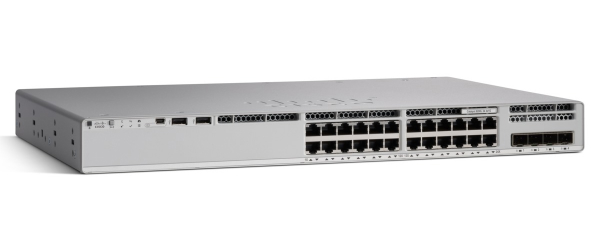

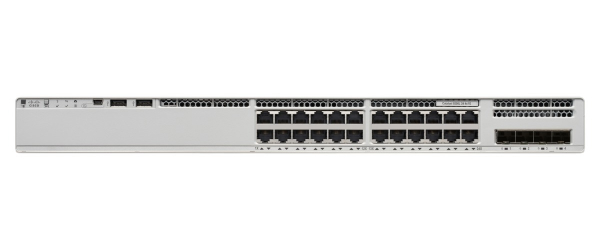

Catalyst 9200L - Managed - L3 - Gigabit Ethernet (10/100/1000) - Vollduplex

Mfg. SKU: C9200L-24T-4X-E

Artikelnummer: 1051610

EAN: 0889728170130

General

Switch type

Managed

Switch layer

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Basic switching RJ-45 Ethernet ports quantity

Full duplex

MAC address table

16000 entries

Switching capacity

128 Gbit/s

Networking standards

IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bz,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z

Power connector

AC-in jack

Vollständige Spezifikation anzeigen ...

CHF 2,369.60 CHF 2,200.19

Wählen Sie das vorgeschriebene Produkt

Menge:

Verfügbarkeit: 6 Stk.

Lieferdatum vom:

Versandkosten vom:

Übersicht

Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks

Up to 48 ports of full Power over Ethernet Plus (PoE+) capability,Flexible downlink options with data or PoE+.

Push your productivity

Operational efficiency

Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps.

Optimized scale

UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure.

Enhanced security

Enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems.

Layer 3 capabilities

Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access.

Full Flexible NetFlow

Advanced network monitoring using Full Flexible NetFlow.

Cisco Software-Defined Access (SD-Access).

Cisco Identity Services Engine (ISE)

Simplified operations and deployment with policy-based automation from edge to cloud managed with Cisco Identity Services Engine (ISE).

Network assurance

Network assurance and improved resolution time through Cisco DNA Center.

Plug and Play (PnP) enabled:

A simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or updates to an existing network.

Cisco IOS XE:

A Common Licensing based operating system for the enterprise Cisco Catalyst 9000 product family with support for model-driven programmability and streaming telemetry.

Micro-engine capabilities

ASIC with programmable pipeline and micro-engine capabilities, along with template-based, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality of Service (QoS) entries.

Additional Product Notes

Switch type: Managed
Switch layer: L3
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

APC SMT3000RMI2UC Uninterruptible Power Supply (UPS) Line-Interactive 3000 VA 2700 W 9 AC Outlet(S)

Technische Daten

Management features

Switch type

Managed

Switch layer

Quality of Service (QoS) support

Web-based management

Traffic classification

ARP inspection

Configuring Location Settings (CLI)

MIB support

BRIDGE-MIB, CISCO-BRIDGE-EXT-MIB, CISCO-BULK-FILE-MIB, CISCO-CABLE-DIAG-MIB, CISCO-CALLHOME-MIB, CISCO-CEF-MIB, CISCO-CIRCUIT-INTERFACE-MIB, CISCO-CONFIG-COPY-MIB, CISCO-CONFIG-MAN-MIB, CISCO-DEVICE-LOCATION-MIB, CISCO-DHCP-SNOOPING-MIB, CISCO-EIGRP-MIB, CISCO-EMBEDDED-EVENT-MGR-MIB, CISCO-ENTITY-FRU-CONTROL-MIB, CISCO-ENTITY-SENSOR-MIB, CISCO-ENTITY-VENDORTYPE-OID-MIB, CISCO-ERR-DISABLE-MIB, CISCO-FLASH-MIB, CISCO-FLOW-MONITOR-MIB, CISCO-FTP-CLIENT-MIB, CISCO-HSRP-EXT-MIB, CISCO-HSRP-MIB, CISCO-IETF-BFD-MIB, CISCO-IETF-PPVPN-MPLS-VPN-MIB, CISCO-IETF-PW-MPLS-MIB, CISCO-IF-EXTENSION-MIB, CISCO-IGMP-FILTER-MIB, CISCO-IMAGE-LICENSE-MGMT-MIB, CISCO-IMAGE-MIB, CISCO-IP-CBR-METRICS-MIB, CISCO-IP-STAT-MIB, CISCO-IP-TAP-MIB, CISCO-IP-URPF-MIB, CISCO-IPSEC-FLOW-MONITOR-MIB, CISCO-IPSEC-MIB, CISCO-IPSEC-PROVISIONING-MIB, CISCO-IPSLA-AUTOMEASURE-MIB, CISCO-IPSLA-ECHO-MIB, CISCO-IPSLA-JITTER-MIB, CISCO-L2-CONTROL-MIB, CISCO-L2L3-INTERFACE-CONFIG-MIB, CISCO-LAG-MIB, CISCO-LICENSE-MGMT-MIB, CISCO-LOCAL-AUTH-USER-MIB, CISCO-MAC-NOTIFICATION-MIB, CISCO-MDI-METRICS-MIB, CISCO-MEDIA-METRICS-MIB, CISCO-MEMORY-POOL-MIB, CISCO-MPLS-LSR-EXT-STD-MIB, CISCO-NBAR-PROTOCOL-DISCOVERY-MIB, CISCO-NHRP-EXT-MIB, CISCO-NTP-MIB, CISCO-PAGP-MIB, CISCO-PORT-SECURITY-MIB, CISCO-PORT-STORM-CONTROL-MIB, CISCO-POWER-ETHERNET-EXT-MIB, CISCO-PRIVATE-VLAN-MIB, CISCO-PROCESS-MIB, CISCO-PRODUCTS-MIB, CISCO-RF-MIB, CISCO-RTP-METRICS-MIB ,CISCO-RTTMON-ICMP-MIB, CISCO-STACKWISE-MIB, CISCO-STP-EXTENSIONS-MIB, CISCO-SYSLOG-MIB, CISCO-TCP-MIB, CISCO-UDLDP-MIB, CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB, ENTITY-MIB, HC-ALARM-MIB, HC-RMON-MIB, IEEE8023-LAG-MIB, IF-MIB, IP-FORWARD-MIB, IP-MIB, LLDP-EXT-MED-MIB, LLDP-MIB, MAU-MIB, MPLS-L3VPN-STD-MIB, MPLS-LSR-STD-MIB, MPLS-VPN-MIB, OLD-CISCO-CHASSIS-MIB, OLD-CISCO-CPU-MIB, OLD-CISCO-INTERFACES-MIB, OLD-CISCO-IP-MIB, OLD-CISCO-MEMORY-MIB, OLD-CISCO-SYS-MIB, OLD-CISCO-TCP-MIB, OLD-CISCO-TS-MIB, POWER-ETHERNET-MIB, RFC1213-MIB, RMON-MIB, RMON2-MIB, SMON-MIB, SNMPv2-MIB, SONET-MIB, TCP-MIB, UDP-MIB

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Fast Ethernet (copper) ports quantity

Power connector

AC-in jack

Power over Ethernet (PoE)

Power over Ethernet (PoE) ports quantity

Data transmission

MAC address table

16000 entries

Switching capacity

128 Gbit/s

Forwarding rate

95.23 Mpps

Jumbo frames support

Jumbo frames

9198

Packet buffer memory

6 MB

Protocols

Management protocols

SNMPv1/v2c/v3

Routing protocols

CDP,EIGRP,OSPF,RIP,VRRP

Network

Networking standards

IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bz,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z

10G support

Copper ethernet cabling technology

10BASE-T,10GBASE-T,100BASE-TX,1000BASE-T

Full duplex

IP routing

Routing entries

3000

Flow control support

Spanning tree protocol

VLAN support

Number of VLANs

4096

Power

Power supply included

Redundant power supply (RPS) support

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Input current

1.6 - 0.7 A

Power consumption (typical)

125 W

Multicast features

Multicast support

Multicast MAC address table

1000 entries

IPv4 multicast entries

3000

IPv6 multicast entries

1500

Design

Product colour

Grey

Electromagnetic compatibility

47 CFR Part 15, CISPR 22 Class A, CISPR 32 Class A, CNS 13438, EN 300 386, EN 55022 Class A, EN 55032 Class A, EN61000-3-2, EN61000-3-3, ICES-003 Class A, KN 32, TCVN 7189 Class A, V-3 Class A, CISPR 24, EN 300 386, EN 55024, KN 35, TCVN 7317

Certification

RoHS, IEC 60950-1, UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, AS/NZS 60950.1

Security

Access Control List (ACL)

Security algorithms

128-bit AES

Operational conditions

Operating temperature (T-T)

-5 - 45 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

5 - 90 %

Operating altitude

0 - 3000 m

Weight & dimensions

Width

445 mm

Depth

288 mm

Height

44 mm

Performance

Memory type

DRAM

Internal memory

2000 MB

Flash memory

4000 MB

Packaging data

Package type

Box
